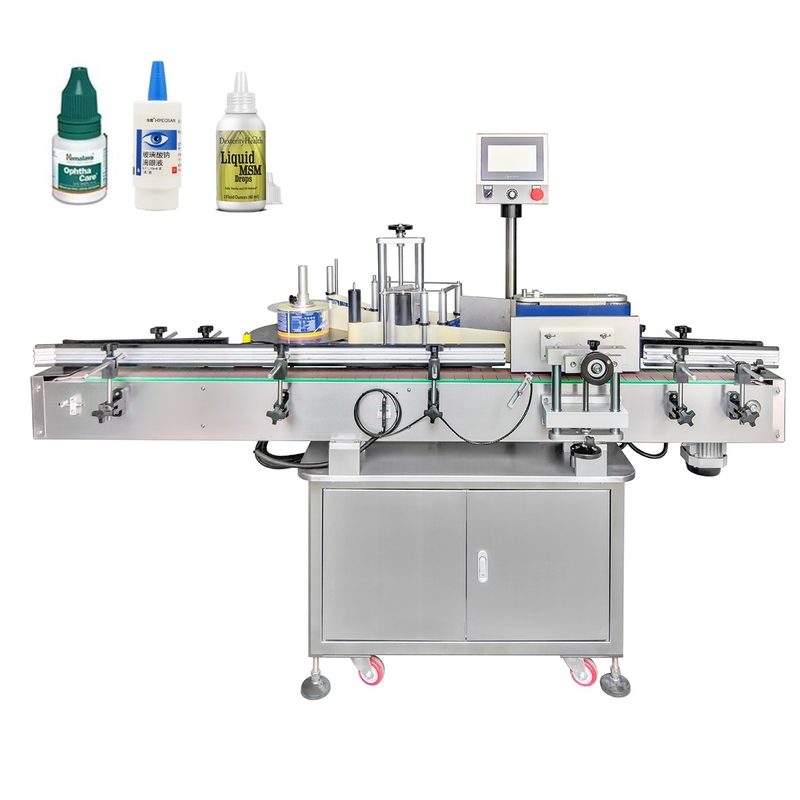

Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
  • Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy

Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy

Lugar de origen Shanghai, China
Nombre de la marca YIMU
Certificación CE
Detalles del producto
Voltaje:
220/380V
Dimensión:
2000 (L)*700 (W)*1700 (H) milímetro
Peso:
300 kg
Velocidad de etiquetado:
20-150 botellas por minuto
Ancho de la etiqueta:
5-310m m
Longitud de la etiqueta:
5 a 500 mm
Precisión del etiquetado:
1 mm
Material:
SS 304
SOCIEDAD ANÓNIMA:
Mitsubishi japonés
Ancho de etiqueta (altura):
10-180m m
Capacidad:
0-200 botellas/min
Velocidad del transportador:
0-30m/min
Diámetro de la botella:
Por debajo de 120 mm
Fuente de alimentación:
700W, 110V/220V, 50/60Hz, 1 fase
Tamaño de la máquina:
L2000 * W800 * H1750 mm
Resaltar:

automatic round bottle labeling machine

,

high accuracy bottle labeling machine

,

round bottle labeler 20-150 bottles/min

Condiciones de pago y envío
Cantidad de orden mínima
1
Precio
$3,200-3,500
Descripción del producto
YIMU YM510 Automatic Bottle Labeling Machine Small Round Bottle Labeler Eyedrop Oil Label Dispenser Sticker Machine
Product Specifications
Attribute Value
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220/380V
Dimension (L×W×H) 2000×700×1700 mm
Warranty 5 years
Key Selling Points High-accuracy
Core Components PLC, motor
Weight 300 KG
Labeling Speed 20-150 Bottles/min
Labeling Accuracy ±1mm
Material SS 304
PLC Japanese Mitsubishi
Product Description
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 0
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 1
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 2
Our flagship product, the YM510 high-speed round bottle labeling machine, has consistently ranked as the top choice in the bottle labeling machine category. It is a high-speed and efficient machine specifically designed for labeling round bottles.
Key Features:
  • High-Speed Operation: Advanced technology enables operation at 20-150 bottles per minute, ideal for large-scale production.
  • Round Bottle Specialization: Precisely designed for round bottles of various diameters and heights with ±1mm accuracy.
  • Intelligent Speed Adaptation: Synchronizes with conveyor belts on both low-speed and high-speed production lines.
  • Premium Labeling Quality: Blue sponge belt labeling head ensures smooth, wrinkle-free label application.
Technical Specifications
No. Specification Value
1 Label width (height) 10-180mm
2 Label length 20-350mm
3 Capacity 0-200 bottles/min
4 Conveyor speed 0-30m/min
5 Labeling accuracy ±0.8mm
6 Bottle diameter Below 120mm
7 Power supply 700W, 110V/220V, 50/60Hz, 1 phase (customized)
8 Label reel inner diameter 76mm or 40mm
9 Label reel outer diameter Max 380mm
10 Machine size L2000 × W800 × H1750 mm
11 Machine net weight 250KG
Additional Images
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 3
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 4
Automatic Round Bottle Labeling Machine 20-150 Bottles/min High Accuracy 5
